Asus ROG Strix 1200W Platinum ATX Power Supply

The Asus ROG Strix 1200W Platinum is an ATX 3.1 certified power supply designed for demanding PC users, offering stable and efficient 1200W power with 80 PLUS Platinum certification and fully modular cabling for easy installation and superior energy efficiency.

Asus ROG Strix 1200W Platinum is designed to provide stable and efficient power delivery for demanding PC users. This ATX 3.1 standard power supply supports a high total power of 1200 W and is equipped with active Power Factor Correction, which improves energy efficiency. Its 80 PLUS Platinum certification guarantees good efficiency, reducing wasted energy and keeping the device cooler. Fully modular cabling facilitates installation and maintenance.

The ROG Strix 1200W Platinum utilizes next-generation GaN MOSFET technology, which improves power management and reduces heat load. Additionally, patented 'GPU-FIRST' voltage sensing ensures stable and optimized power delivery to the graphics card, supporting smoother gaming and more stable performance.

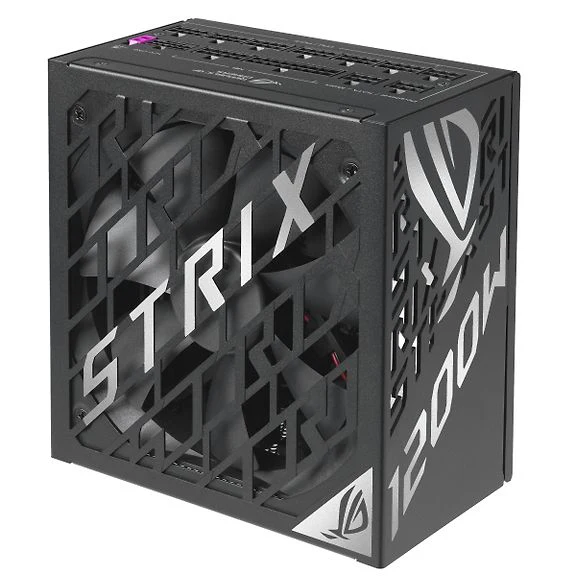

Cooling for the power supply is handled by semi-passive technology and a single dual-ball bearing fan, which has a longer lifespan than traditional bearings. ROG heatsinks help keep temperatures low and noise levels down, making light gaming quieter.

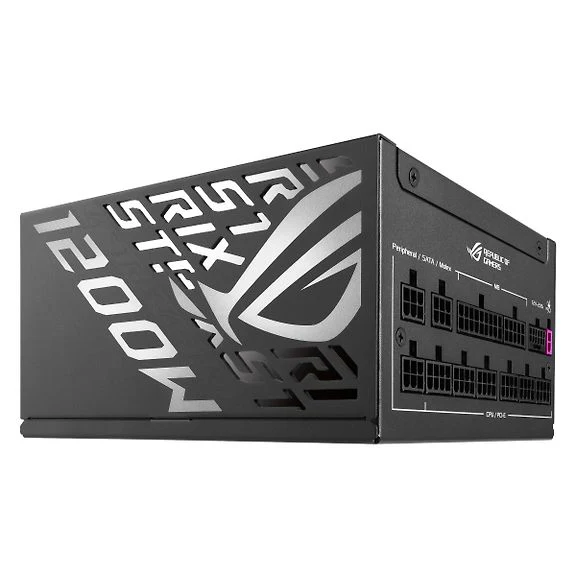

The power supply is ATX 3.1 compatible and supports PCIe 5.0 graphics cards with a native 12V-2x6 connector. The cabling is fully modular and includes several SATA, Molex, and PCIe connectors. The CPU power connector is 4+4-pin, and the cables are designed to be flexible and durable, which simplifies installation and improves cable management within the case.

The ROG Strix 1200W Platinum is built with long-lasting components, such as Japanese low-ESR capacitors. This provides confidence in the device's reliability and lifespan.

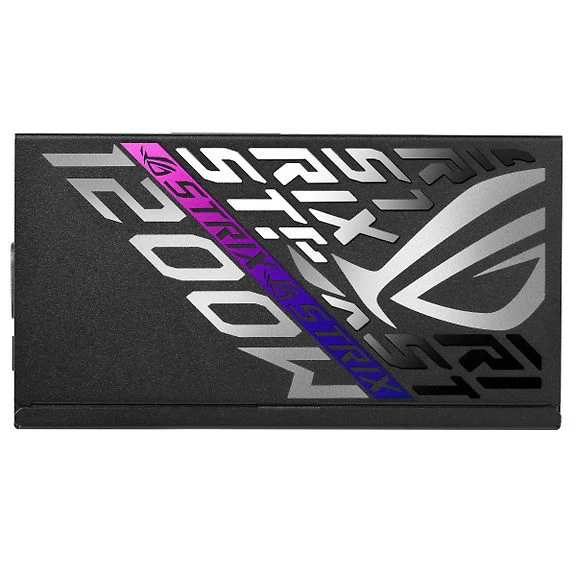

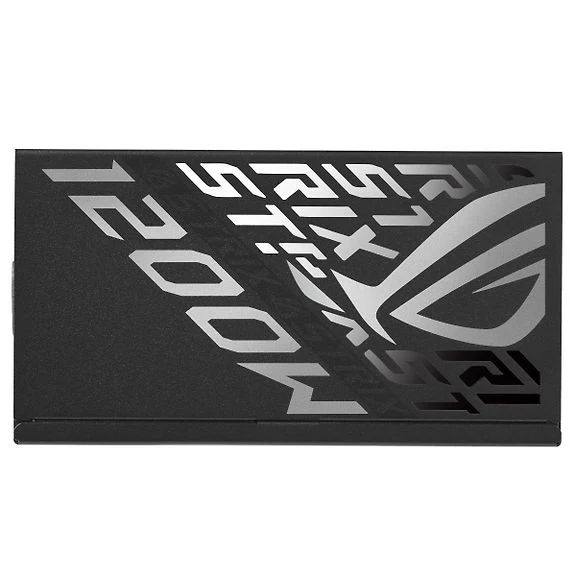

The appearance of the power supply can be customized with included stickers that match the device's design, allowing the user to add a personal touch to their device. The CPU power connector is designed for easy installation with color coding and an integrated clip, reducing the possibility of errors and speeding up the assembly process.

• Total power: 1200 W

• AC input voltage: 100 - 240 V

• Active Power Factor Correction (PFC)

• 80 PLUS Platinum certified energy efficiency

• ATX 3.1 compatible

• PCIe 5.0 ready with native 12V-2x6 connector

• Fully modular cabling

• Combined power: +3.3 V 130 W, +12 V 1200 W, +5 V 130 W, -12 V 3.6 W, +5Vsb 15 W

• Maximum output currents: +3.3 V 25 A, +12 V 100 A, +5 V 25 A, -12 V 0.3 A, +5Vsb 3 A

• Power supply protection features: overcurrent, overpower, overvoltage, short circuit, undervoltage

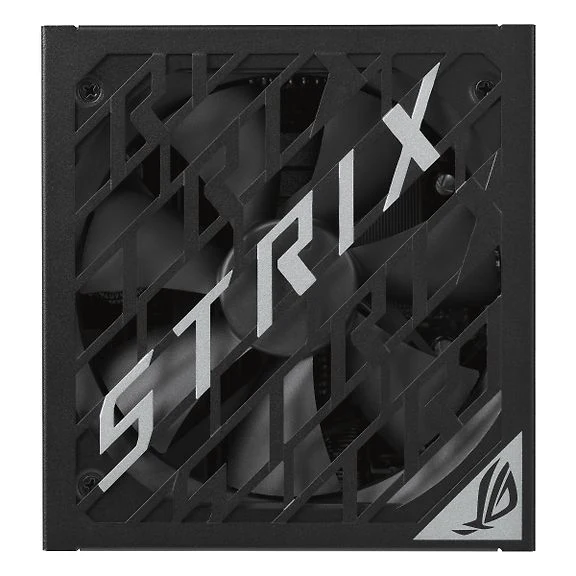

• Cooling: semi-passive, 1 dual-ball bearing fan on top

• Motherboard power connector: 20+4 pin ATX, length 61 cm

• PCI Express power connectors: 4 pcs (6+2 pin) and 1 pc (16-pin), cable length 75 cm

• SATA power connectors: 6 pcs, cable length 120.4 cm

• Molex power connectors: 3 pcs, cable length 150.4 cm

• CPU power connector: 4+4 pin, cable length 100 cm

• Product dimensions: width 160 mm, depth 150 mm, height 86 mm

• Weight: 2.94 kg

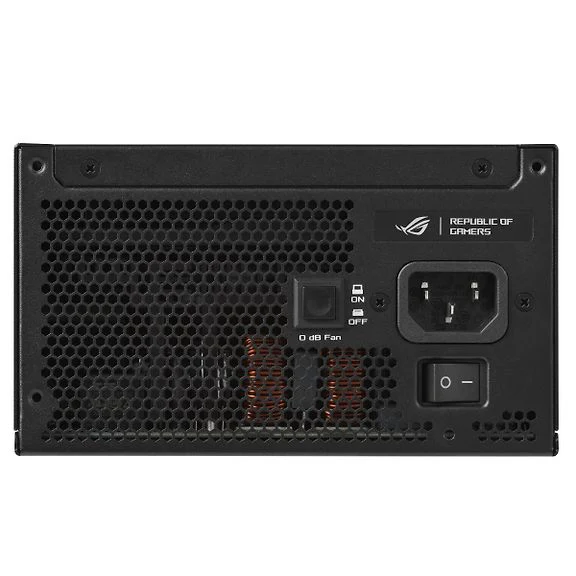

• On/off switch

• Lighting effect

• Mean time to failure (MTTF): 120,000 h
