Unidrain Line 1003 Floor Drain Fixture 700mm with Two Wall Flanges

This Unidrain Line 1003 floor drain fixture is a narrow and elegant stainless steel linear drain featuring two wall flanges for secure, moisture-safe installation in a right-hand corner of a shower.

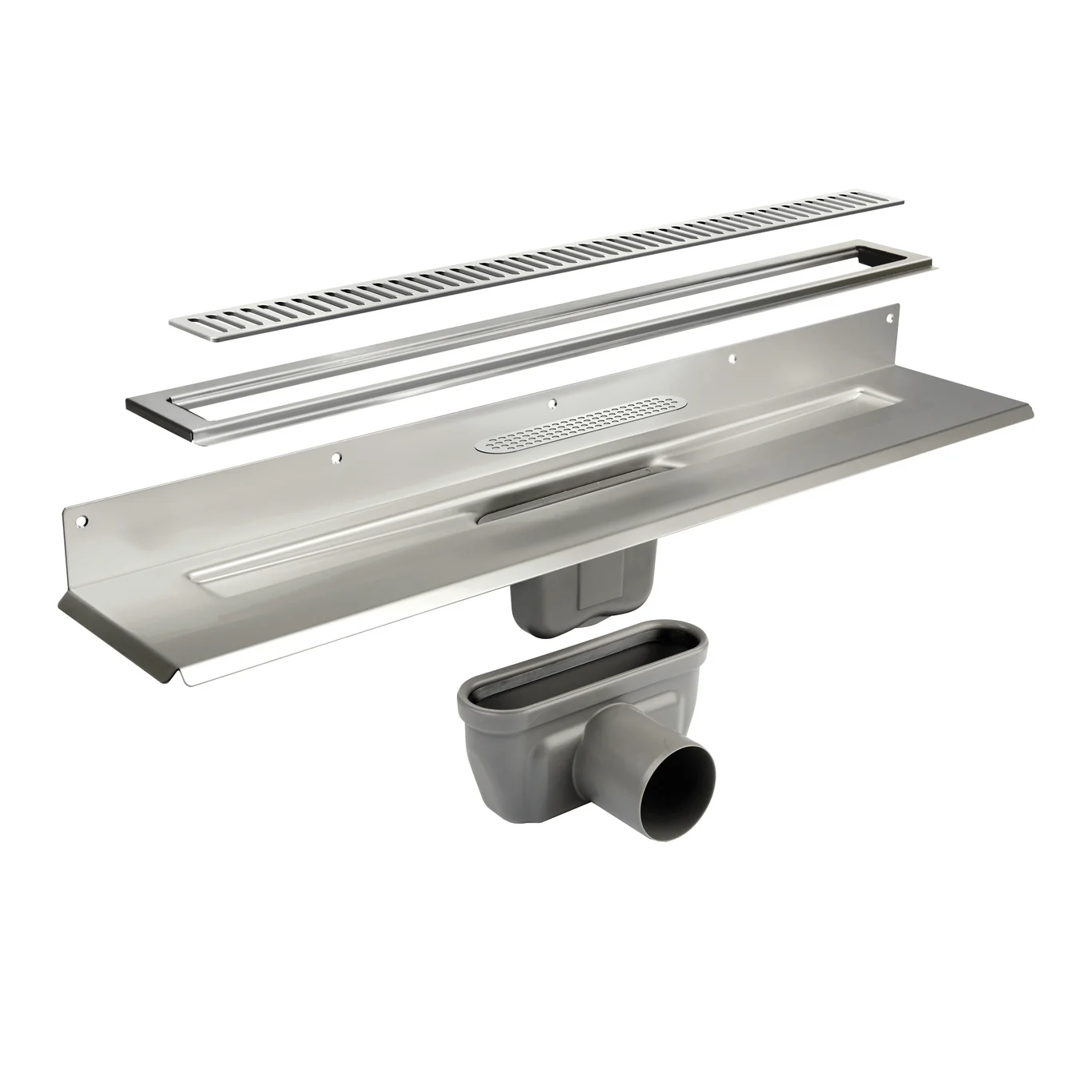

The Unidrain is a narrow and stylish linear floor drain, designed with a patented steel flange structure that allows for moisture-safe installation directly against the wall. The complete drain system consists of four parts: the floor drain fixture, the drain well, the frame, and the grate/panel. The first two components are required before pouring the floor, while the latter two are installed after waterproofing.

Cleaning the Unidrain is exceptionally easy thanks to its handled and removable water trap. Both the floor drain fixture and the main body are crafted from durable stainless steel, ensuring longevity and hygiene, while the drain well is made from robust polypropylene.

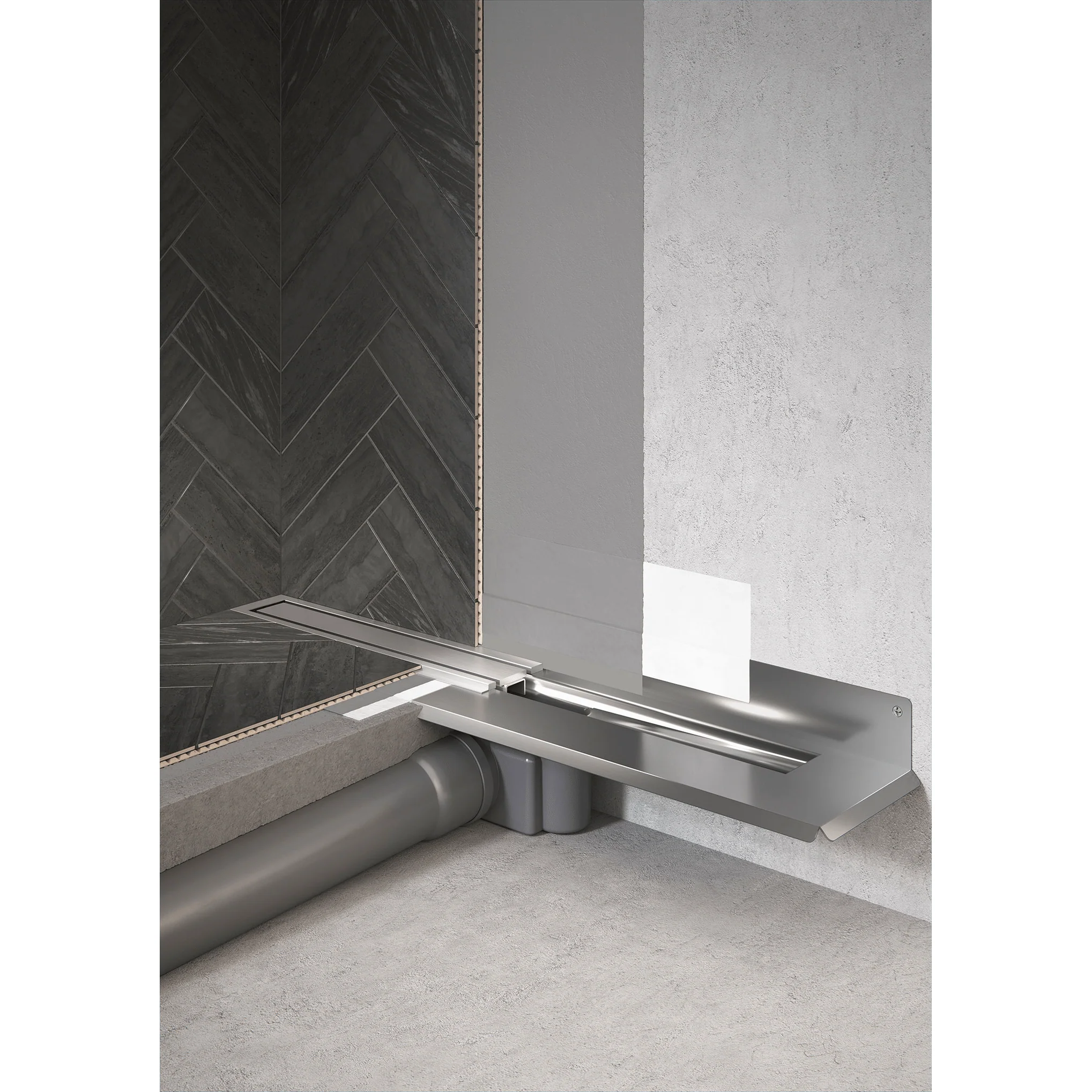

This Line 1003 floor drain fixture is specifically designed for shower corners with an open left side, a glass wall, or similar configurations. It features two wall flanges (at the back and right edge) and two floor flanges, providing secure and watertight installation.

Customers have the flexibility to choose their preferred cover from two distinct collections: the ClassicLine series offers traditional perforated steel grates, while the HighLine collection presents modern, sleek panels to complement contemporary bathroom designs.

• Installation Length: 757 mm

• Frame Length: 695 mm

• Height: 17 mm

• Product Length: 700 mm

• Connection Type: Pipe end

• Shape: Rectangular

• Color: Grey

• Material: 1.5 mm Stainless Steel (AISI 304)

• Surface Finish: Pickled

• Recommended Waterproofing: Brushable waterproofing and reinforcement tape

• Compatible Floor Structures: All

• Compatible Floor Covering: Tiles

• Grate Material: Stainless steel

• Width: 150 mm
