Unidrain Drainage Fixture with Back Wall Flange

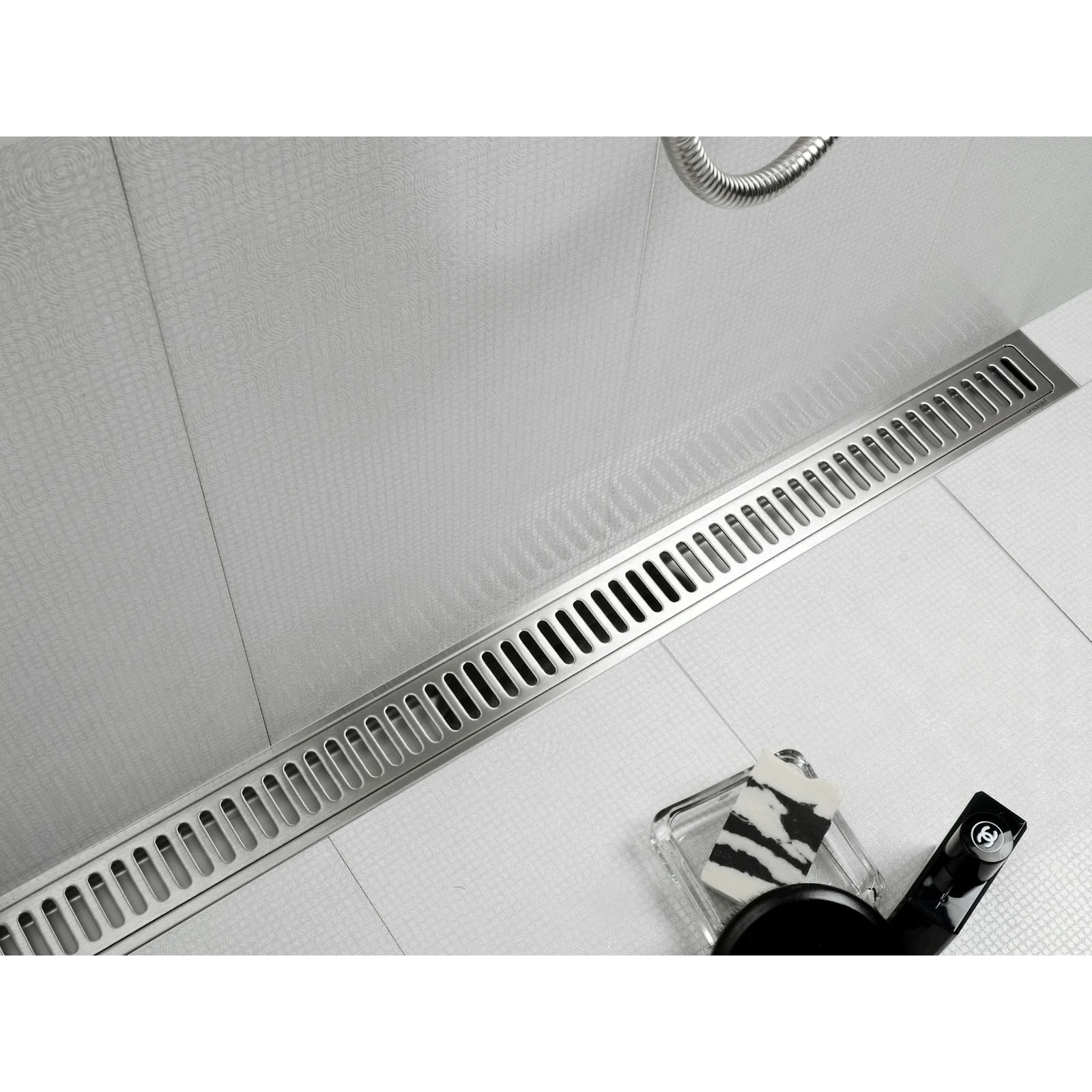

This Unidrain drainage fixture, featuring a back wall flange and crafted from durable AISI 304 stainless steel is designed for flexible installation in tiled bathroom floors, with a nominal length of 800 mm.

This Unidrain drainage fixture is designed for versatile installation, allowing it to be placed centrally against a wall, independent of side wall positions.

The fixture is equipped with a single wall connection and three floor flanges, ensuring a secure and stable fit for various bathroom layouts.

Constructed from high-quality 1.5 mm thick AISI 304 stainless steel, this drain offers exceptional durability and resistance to corrosion, making it ideal for wet environments.

The surface is meticulously pickled, providing an enhanced finish and contributing to the product's long-term aesthetic appeal and performance.

Engineered for optimal waterproofing, it is compatible with brush-on waterproofing membranes and reinforcement tape, ensuring a watertight seal for all floor structures.

Specifically designed for tiled floor coverings, this 800 mm model provides a sleek and functional drainage solution, with the drain centrally positioned for efficient water removal.

• Brand: Unidrain

• Vendor ID: 1004.0800

• Product Number (LVI): 3307663

• EAN Code: 5707692003191

• Material: 1.5 mm Stainless Steel (AISI 304)

• Surface Finish: Pickled

• Waterproofing Compatibility: Brush-on waterproofing and reinforcement tape

• Floor Structure Compatibility: All types

• Floor Covering Compatibility: Tiles

• Drain Position: Center

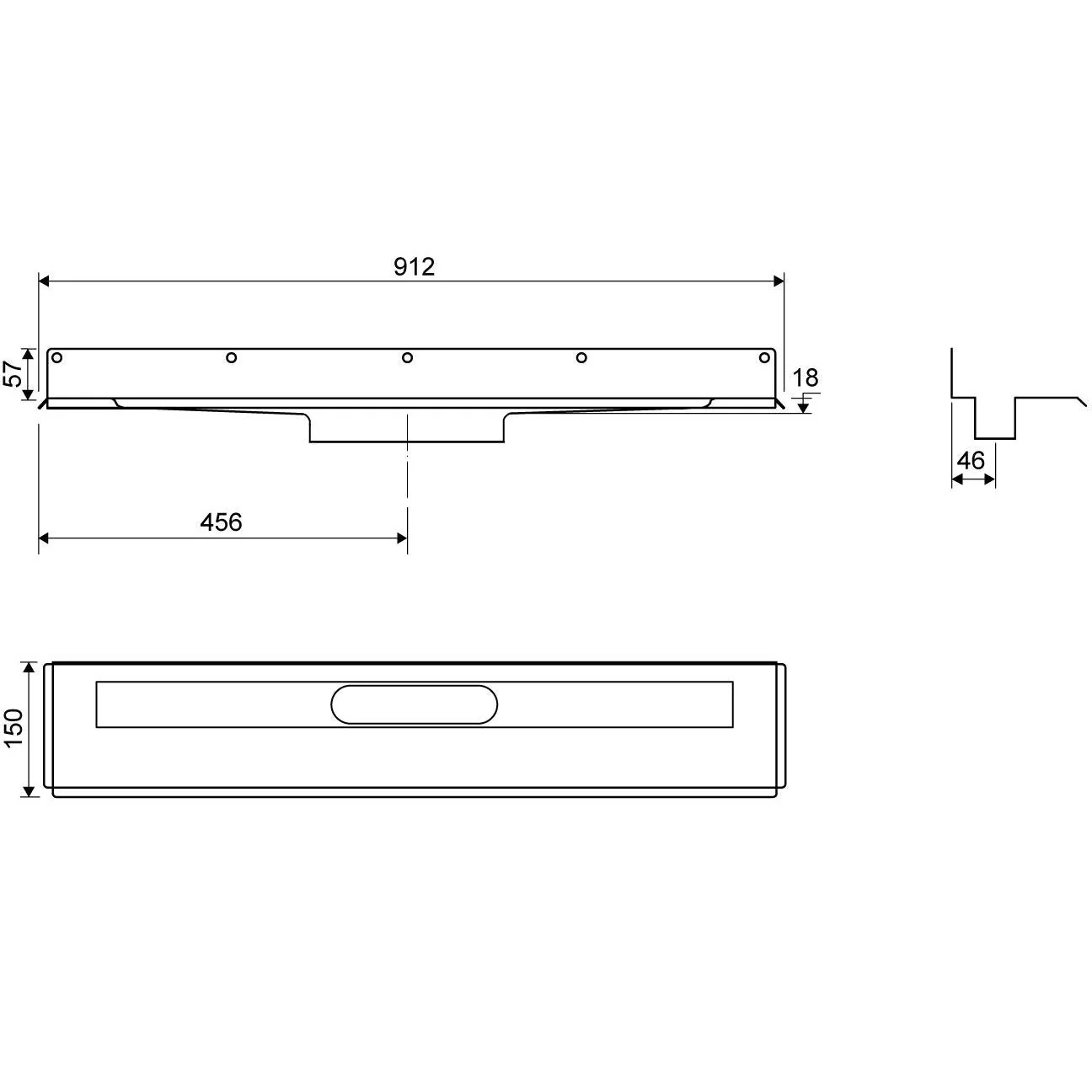

• Nominal Length: 800 mm

• Overall Width: 912 mm

• Overall Depth: 150 mm
