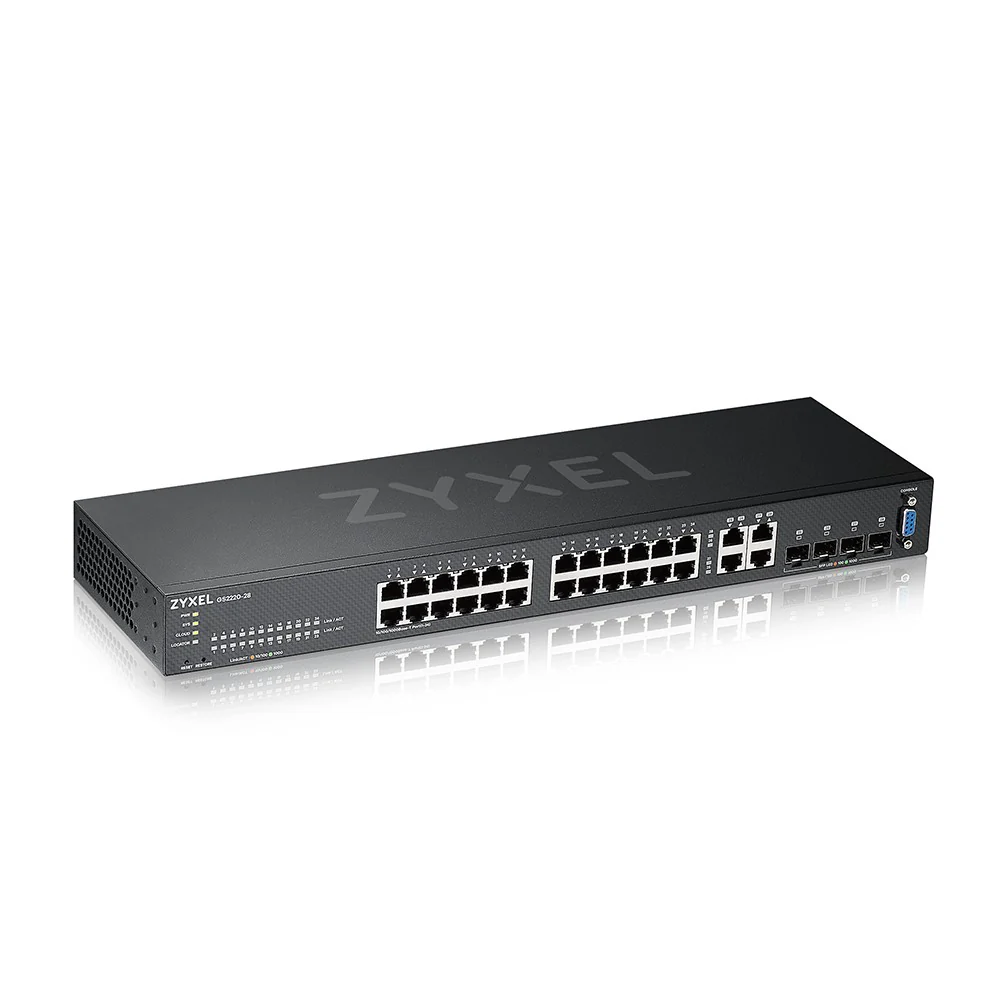

Zyxel GS2220-28 Managed L2 Gigabit Ethernet 24 Port Network Switch, Black

The Zyxel GS2220-28-EU0101F is a managed L2 switch, featuring 24 Gigabit Ethernet (10/100/1000) RJ-45 ports. It boasts a MAC address table of 16000 entries and a switching capacity of 56 Gbit/s. This rack-mountable switch supports various network standards and offers comprehensive management and security features.

The Zyxel GS2220-28-EU0101F is a high-performance, managed Layer 2 network switch designed for robust and reliable network infrastructure. It comes equipped with 24 basic switching RJ-45 Gigabit Ethernet ports, providing ample connectivity for various devices within a network environment. The switch's L2 management capabilities ensure efficient traffic handling and network optimization.

This switch supports a wide array of network standards, including IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z, ensuring broad compatibility and advanced networking functionalities. It also features 4 Combo SFP ports for flexible fiber optic connectivity options.

With a substantial MAC address table of 16000 entries and a switching capacity of 56 Gbit/s, the GS2220-28-EU0101F can handle high data volumes and complex network topologies with ease. Its forwarding rate of 42 Mpps further contributes to its efficient data transfer capabilities making it suitable for demanding business applications.

Security is a key aspect of this Zyxel switch, offering features like Access Control Lists (ACL), IGMP snooping, and MAC address filtering. It supports various DHCP features including DHCP client, relay, snooping, DHCPv6 client, and relay. Authentication methods such as Guest VLAN, MAC-based authentication, IEEE 802.1x, and RADIUS are also supported, providing robust network access control.

The switch is designed for rack mounting, making it easy to integrate into existing server racks. It operates silently with a 0 dB noise level, thanks to its fanless design, which is ideal for quiet office environments. The internal memory of 256 MB and Flash memory of 32 MB ensure smooth operation and efficient firmware management.

Environmentally conscious, the switch has an operating temperature range of 0 to 50 °C and can be stored between -40 to 70 °C, with relative humidity levels from 10 to 95% for both operation and storage. Its impressive Mean Time Between Failures (MTBF) of 989157 hours highlights its long-term reliability and durability.

• Switch type: Managed

• Switch layer: L2

• Quality of Service (QoS) support: Yes

• Web-based management: Yes

• CLI configuration: Yes

• System event log: Yes

• Basic switching RJ-45 Ethernet ports quantity: 24

• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

• Combo SFP ports quantity: 4

• Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

• 10G support: No

• Ethernet cabling technology: 10BASE-TX, 1000BASE-T

• Power management support: Yes

• Link aggregation: Yes

• Broadcast Storm Control: Yes

• Rate limiting: Yes

• Spanning Tree Protocol (STP): Yes

• VLAN support: Yes

• Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

• Switching capacity: 56 Gbit/s

• Forwarding rate: 42 Mpps

• MAC address table: 16000 entries

• Packet buffer memory: 1.5 MB

• DHCP features: DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay

• Access Control List (ACL): Yes

• IGMP snooping: Yes

• Security algorithms: SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS

• MAC address filtering: Yes

• Authentication method: Guest VLAN, MAC-based authentication

• Authentication type: IEEE 802.1x, RADIUS

• Multicast support: Yes

• Rack mounting: Yes

• Product color: Black

• Internal memory: 256 MB

• Flash memory: 32 MB

• Noise level: 0 dB

• Firmware upgradeable: Yes

• Fanless: Yes

• Mean time between failures (MTBF): 989157 h

• AC input voltage: 100 - 240 V

• AC input frequency: 50 - 60 Hz

• Power consumption (max): 22.5 W

• Power over Ethernet (PoE) support: No

• Operating temperature (T-T): 0 - 50 °C

• Storage temperature: -40 - 70 °C

• Operating relative humidity (H-H): 10 - 95%

• Storage humidity: 10 - 95%

• Heat dissipation: 76.725 BTU/h

• Product width: 441 mm

• Product depth: 131 mm

• Product height: 44 mm

• Weight: 2.2 kg

• Cables included: AC

• Package width: 558 mm

• Package depth: 214 mm

• Package height: 79 mm

• Package weight: 2.91 kg

• Certification: LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A

• Harmonized System (HS) code: 85176990
