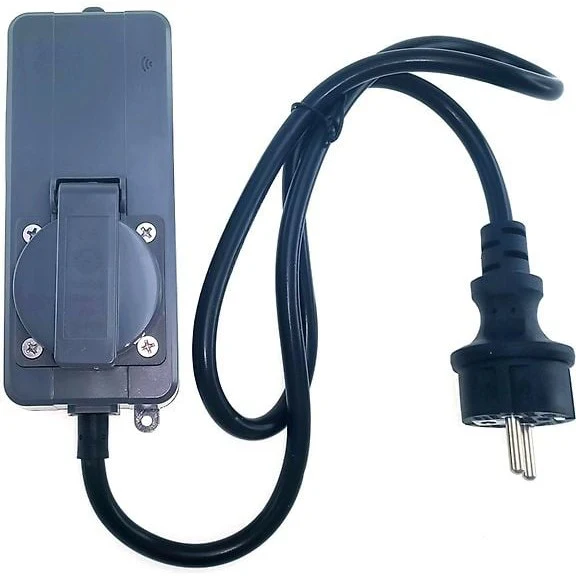

SimPal WS250 Outdoor Socket, GSM, IP44

The SimPal WS250 is a weather and frost-resistant GSM-controlled smart outdoor socket designed for remote power management and consumption monitoring of electrical devices.

The SimPal WS250 is a robust smart outdoor socket, built to withstand various weather conditions and frost, offering remote control capabilities via GSM. It is specifically designed for switching electrical devices on and off, as well as measuring their power consumption.

Control over the mains power supply can be achieved remotely using a mobile phone via SMS text messages, phone calls, or a dedicated mobile application available for both Android and iOS platforms. The SimPal WS250 is compatible with SIM cards from all operators and only requires voice and SMS services, eliminating the need for a separate data plan.

A key feature of the SimPal WS250 is its ability to alert users about power outages and their restoration via SMS. This crucial information allows users to report outages to electricity companies and take necessary actions if a power cut persists for an extended period.

The SimPal WS250 system is expandable with SimPal T20-V2/S20 slave sockets and wireless V2 sensors. Remote units are controlled via a 434MHz radio frequency, enabling multiple remotely controlled sockets to be managed with a single SIM card, effectively creating a small-scale alarm system. A new WTL-063-F-V2 temperature/light sensor allows for power control based on temperature or illumination levels.

The socket offers comprehensive power consumption monitoring, capable of sending SMS alerts if predefined thresholds are exceeded. It also provides detailed daily, weekly, and monthly reports on consumption, giving users valuable insights into their energy usage.

With an IP44 weather protection rating, a wide operating temperature range of -30 to +35°C, and a high load capacity of 3500W (16A, resistive load), the SimPal WS250 offers versatile usage possibilities for various outdoor applications.

• Remote Control: On/off via SMS or app

• Power Outage Alerts: SMS notification for 230VAC power cuts and restoration

• Scheduling: Timed controls via weekly calendar or delayed for specific durations

• Power Consumption Monitoring: Tracks usage, sends SMS alerts for exceeded thresholds, provides daily, weekly, and monthly reports

• Weather Resistance: IP44 rating

• Load Capacity: 3500W (16A, resistive load)

• Operating Temperature Range: -30 to +35°C

• GSM Frequencies: 900/1800MHz

• SIM Card Slot: 1.8/3V

• Supported Phone Numbers: 5x GSM numbers

• Management: SMS, phone call, or mobile application

• Delayed Control: Yes

• Scheduled Control: Yes

• Temperature and Light Control: Via WTL-063-F-V2 sensor

• Remote Controllers Supported: 2 (max)

• Slave Sockets Supported: 4 (max)

• Wireless Sensors Supported: 6 (max)

• Relative Humidity: 10-90% (non-condensing)

• Indicator LEDs: 2x (Power, GSM, Alarm status)

• Standby Power Consumption: <17mA

• Input Current: 110-230VAC @ 50Hz

• Plug Type: Suko plug, CEE 7/7

• Socket Type: Suko socket, CEE 7/4

• Rubber Cable Length: 80cm

• Color: Black
