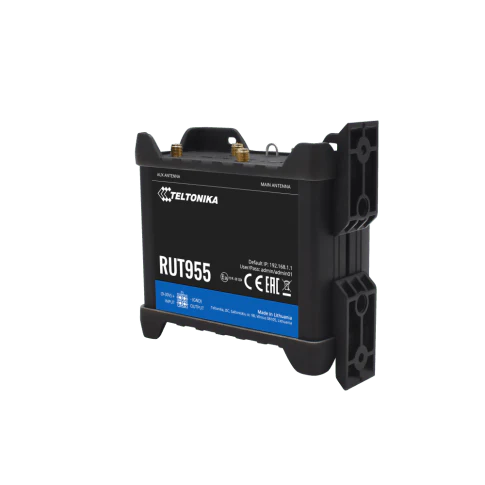

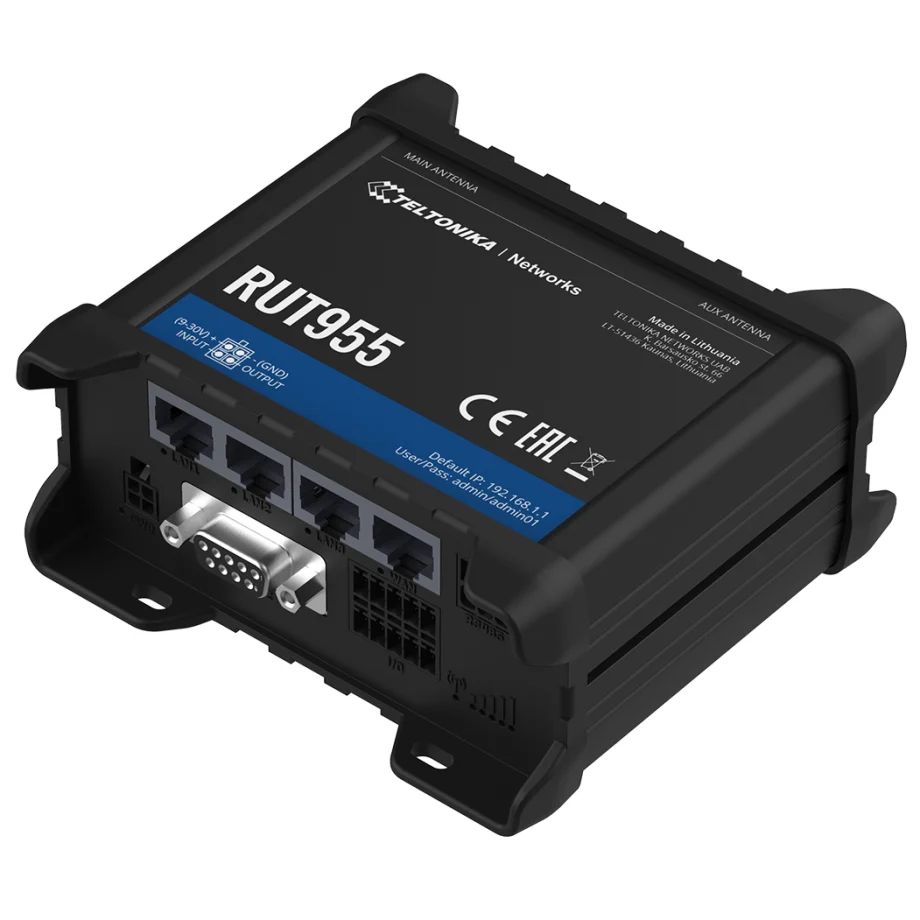

Teltonika RUT955 Global LTE 4G Router

The Teltonika RUT955 is a robust 4G router designed for professional use, featuring dual SIM card slots for reliable backup connections and integrated WiFi 4, making it ideal for critical business applications in various environments.

The Teltonika RUT955 is a highly reliable 4G router engineered for demanding professional applications. Its robust design and advanced features make it an ideal solution for business-critical tasks requiring stable and continuous connectivity.

Equipped with two SIM card slots, the RUT955 offers exceptional connection redundancy. This dual-SIM capability allows the router to automatically switch between operators in case of weak signal, data limit, or network failure ensuring uninterrupted internet access, particularly vital for mobile environments like vehicles and boats.

Versatility in power options is a key advantage of the RUT955. While a 230V power supply is included, the device can also be powered directly from a 9-30V battery, making it perfectly suited for installation in diverse settings such as mobile vehicles, tractors, forestry machines, and marine vessels. Passive PoE support further simplifies deployment.

Connectivity is comprehensive with the RUT955, featuring two SMA female connectors for 4G antennas, three Ethernet LAN ports, and one WAN port, all supporting 10/100 Mbps speeds. It also includes two detachable WiFi antennas, providing robust wireless coverage via IEEE 802.11b/g/n standards.

Beyond its core networking capabilities, the RUT955 integrates a wide array of advanced functionalities including extensive VPN support (OpenVPN, IPsec, GRE, etc.), Modbus TCP/RTU for industrial applications, and GNSS for precise location tracking. These features, combined with its durable aluminum casing and wide operating temperature range, underscore its suitability for challenging industrial and outdoor environments.

• Mobile Connectivity: 4G (LTE Cat 4), 3G, 2G

• SIM Slots: Dual SIM with auto-switch for failover

• Antenna Connectors: 2 x SMA for LTE, 1 x SMA for GNSS, 2 x RP-SMA for WiFi

• Ethernet Ports: 3 x LAN, 1 x WAN (10/100 Mbps)

• Wireless Standard: IEEE 802.11b/g/n (WiFi 4)

• WiFi Security: WPA2-Enterprise, WPA2-PSK, WPA-PSK, WEP, MAC Filter

• Simultaneous WiFi Users: Up to 100

• Routing Protocols: Static, BGP, OSPF v2, RIP v1/v2

• VPN Support: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, SSTP, ZeroTier

• Industrial Protocols: Modbus TCP Slave/Master, Modbus RTU Master (RS232/RS485)

• Management: WEB UI, FOTA, SSH, SMS, TR-069, MQTT, SNMP, JSON-RPC, RMS

• Processor: Atheros Wasp, MIPS 74Kc, 550 MHz

• Memory: 128 MB RAM, 16 MB Flash

• Operating System: RutOS (OpenWrt based Linux OS)

• Location Tracking: GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS), Mobile Network Geolocation, Geofencing

• Serial Interfaces: RS232, RS485

• Inputs/Outputs: Digital inputs (isolated/non-isolated), Analog input, Digital open collector outputs, SPST relay output

• USB Port: USB 2.0 (for external devices, Samba share)

• SD Card Slot: Micro SD (up to 32 GB)

• Power Input: 9 – 30 VDC, Passive PoE

• Casing: Aluminium housing, plastic panels

• Ingress Protection Rating: IP30

• Operating Temperature: -40 °C to 75 °C
