Teltonika TRB500 3G/4G/5G Modem and Router

A compact 5G modem and Ethernet router designed for professional use, offering high-speed connectivity and advanced networking features.

The Teltonika TRB500 is a compact and energy-efficient 5G modem and Ethernet router engineered for professional applications. Despite being categorized as a "Gateway" due to its single Ethernet port and lack of integrated Wi-Fi, it functions as a full-featured router with advanced firewall capabilities ensuring robust network security.

Equipped with four 5G/4G antenna connectors (SMA female), the TRB500 offers versatile deployment options. For optimal performance, it supports the simultaneous use of up to five 4G frequency bands (Carrier Aggregation), delivering the fastest possible 4G speeds. While four small 5G/4G antennas are included, connecting external antennas can further enhance reliability and speed, with Teltonika recommending four identical antennas for peak performance.

The TRB500 runs on the RutOS operating system, which provides a comprehensive suite of advanced security features and seamless compatibility with Teltonika's Remote Management System (RMS). This integration allows for optimized remote management and monitoring, making it an ideal solution for managing large fleets of devices efficiently.

While the Teltonika RUTX50 features superior technology for higher speeds, the TRB500 distinguishes itself as a highly compact and energy-efficient solution. Its design makes it perfectly suited for professional applications where space and power consumption are critical considerations, offering a reliable and powerful networking solution in a small footprint.

• Mobile Module: 5G Sub-6GHz SA/NSA (up to 3.3Gbps DL, 900Mbps UL), 4G LTE Cat 20 (up to 2.0Gbps DL, 200Mbps UL), 3G (up to 42Mbps DL, 5.76Mbps UL)

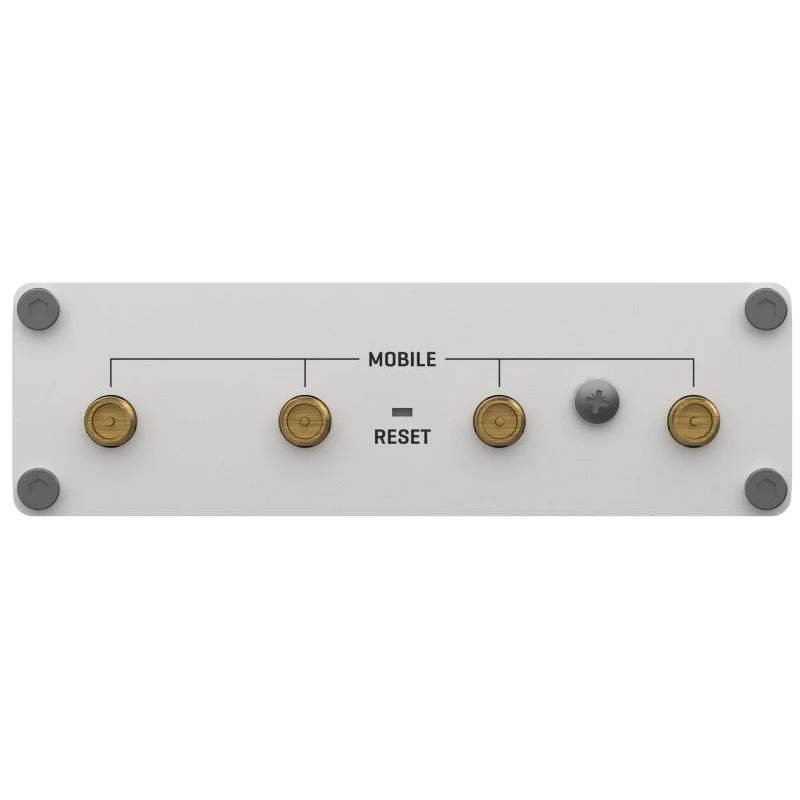

• Antenna Connectivity: 4 x SMA female connectors for 5G/4G antennas

• Ethernet Port: 1 x Gigabit Ethernet LAN port

• Carrier Aggregation: Supports up to 5 x 4G frequency bands simultaneously

• Bridge Mode: Selectable for direct ISP connection

• Passthrough Mode: Allows gateway to assign mobile WAN IP to another LAN device

• Operating System: RutOS

• Security: Pre-shared key, digital certificates, X.509 certificates

• Firewall: Configurable rules via WebUI/CLI, NAT, NAT-T

• Attack Prevention: DDOS (SYN flood, SSH, HTTP/HTTPS), Port Scan

• VLAN Support: Port and tag-based separation

• Mobile Data Control: Customizable data limits for SIM card

• Web Filter: Blacklist and Whitelist functionality

• Access Control: Flexible TCP, UDP, ICMP packet control, MAC address filter

• VPN Support: OpenVPN, IPsec, WireGuard, ZeroTier, GRE, PPTP, L2TP, SSTP, STUNNEL, DMVPN

• Configurable I/O: 2 x Digital Inputs/Outputs (0-5V/8-40V input, 30V/300mA open collector output)

• Power Input: 9-30 VDC with reverse polarity and surge protection

• Power Consumption: <3W (Idle), <6W (Max)

• SIM Slot: 1 x Mini SIM (2FF), 1.8V/3V

• Reset Functionality: Reboot, User default reset, Factory reset button

• Grounding: Screw terminal

• Frequency Bands: All 4G frequencies 700-2600 MHz, Common 5G/4G frequencies 700-3500 MHz, including specific bands like 5G 3.5 GHz, 4G 800 MHz, etc.
